Configure runbooks

Define named, multi-step procedures and run them against your installs on demand.

Runbooks turn a multi-step operational procedure into a single, repeatable artifact you run against an install on demand. Define the sequence once; run it consistently across every install instead of doing it by hand each time.

Common uses:

• version upgrades
• database migrations
• data backfills
• recovery steps

Each step has a type that determines what it does:

• component_deploy — Deploy a component. Set deploy_dependents to also roll out the component’s downstream dependents, in dependency order. (deploy is accepted as a legacy alias.)
• component_tear_down — Tear down a component. Set tear_down_dependents to also tear down its downstream dependents, with dependents removed first.
• action — Run an existing action, or an inline command or script defined directly on the step.
• sandbox_reprovision — Reprovision the install’s sandbox infrastructure. Set skip_component_deploys to reprovision the infrastructure only, without redeploying components on top.
• sandbox_deprovision — Deprovision the install’s sandbox infrastructure.

Steps run in order, and every run is recorded in the install’s workflow history: a durable, auditable record of what ran, when, and against which install.

Where runbooks live

Define runbooks as TOML files in a runbooks/ directory in your app config. Each file is one runbook:

my-app/
├── metadata.toml
├── components/
├── actions/
└── runbooks/
    └── v2.3-update.toml

They sync with the rest of your config via nuon apps sync, run from the app’s working directory in your terminal. Whenever you edit a runbook file locally, re-run nuon apps sync to push the changes to Nuon.

Example

name        = "v2.3-update"
description = "Apply the v2.3 schema migration, then roll out the API."
readme      = "./runbooks/v2.3-update.md"

[[steps]]
name        = "migrate-db"
type        = "action"
action_name = "database-migration"

[[steps]]
name           = "deploy-api"
type           = "component_deploy"
component_name = "api-server"
deploy_dependents = true

[[steps]]
name    = "smoke-test"
type    = "action"
command = "./scripts/smoke-test.sh"
timeout = "5m"

Configuration reference

Runbook

Field	Type	Required	Description
name	string	Yes	Name shown in the Runbooks tab and used to identify the runbook during sync.
description	string	No	Short description of what the runbook does.
readme	string	No	Markdown documentation for the runbook. Supports Go templating and external file sources (HTTP(S) URLs, git, or local paths).
labels	map	No	Key/value labels for organizing runbooks.
steps	array	Yes	Ordered list of steps to execute. See below.

Step

Field	Type	Required	Description
name	string	Yes	Step name shown in the workflow UI and runbook detail page.
type	string	Yes	component_deploy, component_tear_down, action, sandbox_reprovision, or sandbox_deprovision. deploy is accepted as a legacy alias.
component_name	string	component steps	Component to deploy or tear down. Required when type = "component_deploy" or "component_tear_down".
deploy_dependents	bool	No	When true, also deploys the component’s transitive dependents (downstream subgraph) in dependency order. Only applies to component_deploy steps.
tear_down_dependents	bool	No	When true, also tears down the component’s transitive dependents (downstream subgraph), with dependents torn down first. Only applies to component_tear_down steps.
skip_component_deploys	bool	No	When true, only the sandbox infrastructure is reprovisioned; components are not redeployed on top. Only applies to sandbox_reprovision steps.
action_name	string	action steps	Name of an existing action to run. Mutually exclusive with the inline fields below.
command	string	action steps	Shell command for an inline action. Supports Go templating.
inline_contents	string	action steps	Inline script contents, or a reference to an external file. Supports templating and external sources.
env_vars	map	No	Environment variables for an inline action step.
timeout	string	No	Maximum execution time for an inline action step (Go duration, e.g. 30s, 5m).
role	string	No	IAM role to assume when executing an inline action step.

An action step uses either action_name (to run a previously defined action) or the inline fields (command / inline_contents) to define an inline action, not both.

Triggering a runbook

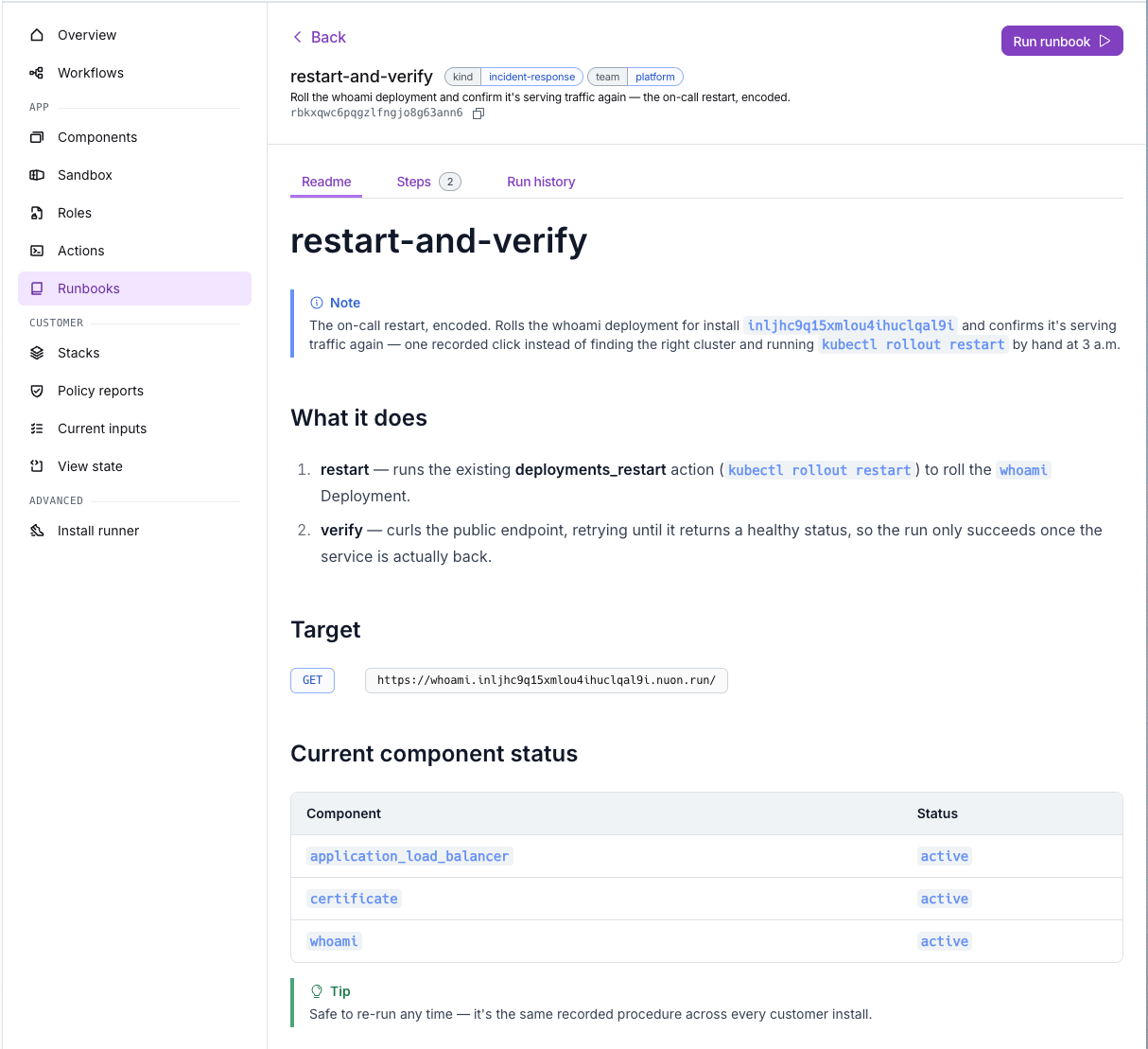

Trigger and watch runs from the Runbooks tab in the dashboard, or from the CLI:

# View and run runbooks for an install
nuon runbooks --install-id <install-id>

Each run is recorded in the install’s workflow history, so you can review the steps, logs, and outcome of any past runbook execution.

A complete example

For a runnable example, see the programmable-runbook-and-readme app config in example-app-configs. It has runbooks for an on-call restart and a smoke test, plus rendered READMEs that embed them.
